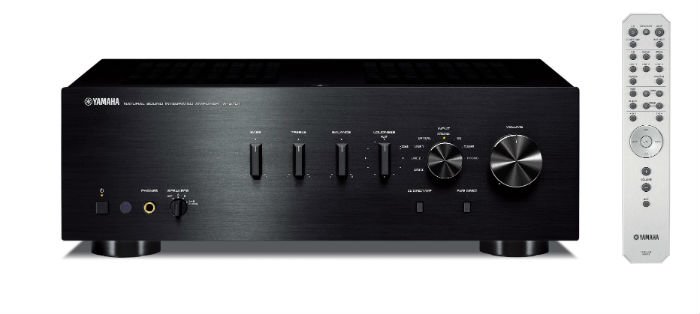

Yamaha AS701B Integrated Amplifier in Black
Yamaha AS701B Integrated Amplifier in Black

Vendor:bakons

Yamaha AS701B Integrated Amplifier in Black

Sale price$551.42Regular price $919.05

Yamaha AS701B Integrated Amplifier in Black

Extremely pure sound quality and outstanding drive power. An integrated amplifier with the advantage of digital input.

  • ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
  • - I/O (input to output) Direct Symmetrical Design
  • - ART (Anti-Resolution and Tough) Base
  • - Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
  • 160W x 2 (max), 100W x 2 (RMS) high power output
  • CD Direct Amplification and Pure Direct
  • Continuous Variable Loudness Control
  • Gold-plated speaker terminals and RCA terminals
  • Digital audio inputs for TV or Blu-ray Player
  • Simple yet sophisticated design (aluminium front panel and knobs)
  • Auto Power Standby

SPECIFICATION

Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz) 100 W + 100 W (0.019% THD)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) 160 W + 160 W
High Dynamic Power/Channel (8/6/4/2 ohms) 140/170/220/290 W
Damping Factor 240
Frequency Response 10 Hz-100 kHz +/-1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) 0.019% (50 W/8 ohms)
Signal-to-Noise Ratio (CD) 99dB (input shorted, 200 mV)
Audio In / Out 8 / 2
Digital Input Yes (optical / coaxial)
Subwoofer Out Yes
DC out Yes
Pure Direct Yes
ToP-ART Yes
Switchable CD Direct Amplification Yes
Standby Power Consumption 0.5W
Power Management (Auto Power Standby) Yes
Dimensions (W x H x D) 435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4”
Weight 11.2 kg; 24.7 lbs.


Yamaha AS701B Integrated Amplifier in Black, yamaha, as701b, as-701, as701, two channel amp, 701

Colour
Colour: Black
