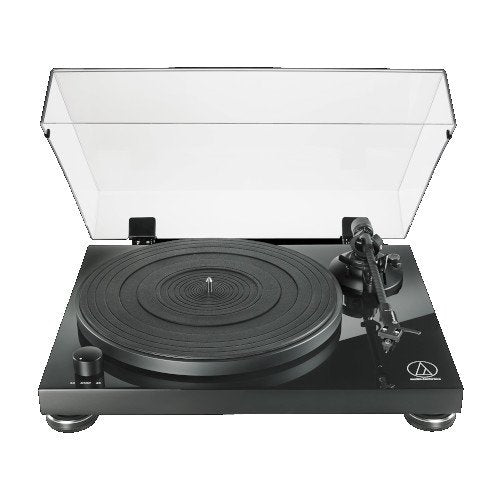

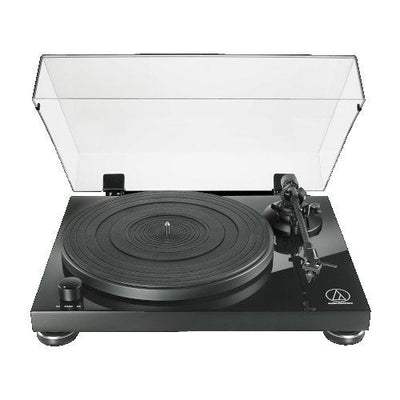

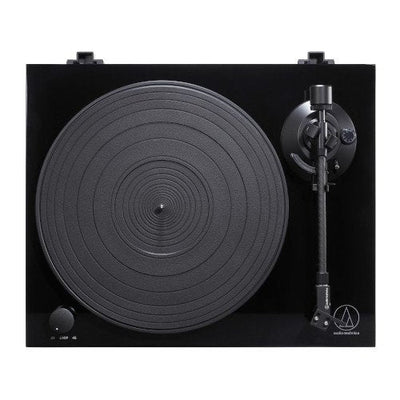

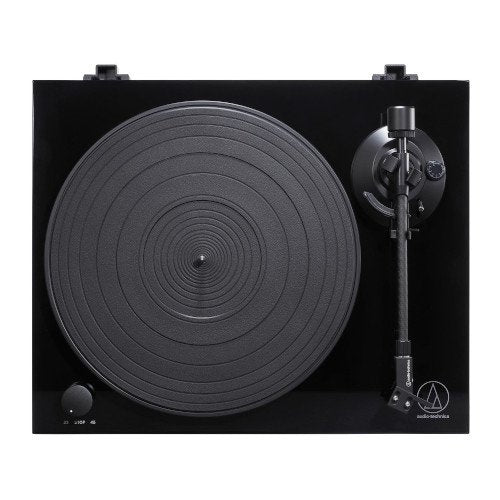

Audio Technica ATLPW50PB Fully Manual Belt-Drive Turntable
The fully manual, belt drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an anti-resonance 30 mm thick MDF (medium density fibreboard) plinth with high gloss piano black finish to dampen low frequency acoustical feedback.
The turntable includes a straight, matte-finish, carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½” mount headshell with black AT-VM95E Dual Moving Magnet phono cartridge. Audio Technica has been a leader in phono cartridge design for more than 50 years and that expertise shows in the versatile, high performance AT-VM95E cartridge which comes with 0.3 x 0.7 mil elliptical stylus, but is compatible with VM95 Series replacement stylus offering a wide choice of options for every budge and application.
Features
33-1/3 RPM and 45 RPM
Built-in Switchable Phono Pre-Amplifier
Carbon-Fiber Straight Tonearm
AT-VM95E Dual Magnet Phono Cartridge
Stunning Look, Stunning Sound
Marked by the high-gloss, piano black finish of its anti-resonance plinth. The AT-LPW50PB offers sleek, modern styling to match the supreme accuracy of its sensor monitored motor.
Designed for a Higher Level of Listening
The AT-LPW50PB is equipped with a straight, matte-finish, carbon-fiber tonearm and comes with an AT-HS4 universal ½”-mount headshell and a special black version of the versatile AT-VM95E Dual Moving Magnet phono cartridge.
Over 55 Years of Analog Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.
Specifications
Type Belt-drive manual turntable
Motor DC servo with Active Speed Stabilization
Drive Method Belt drive
Speeds 33-1/3 RPM, 45 RPM
Turntable Platter Die-cast aluminum
Wow and Flutter < 0.15% WRMS (33 RPM) at 3 kHz
Signal-to-Noise Ratio >60dB
Output Level Pre-amp "PHONO": 4.0 mV nominal at 1 kHz, 5 cm/sec
Pre-amp "LINE": 200 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 35 dB nominal, RIAA equalized
Power Supply Requirements 100-240 V, 50/60 Hz, 0.5 A Max.
Dimensions With dustcover: 420.0 mm (16.54") W x 356.0 mm (14.02") D x 126.0 mm (4.96") H
Without dustcover and hinges: 420.0 mm (16.54") W x 356.0 mm (14.02") D x 114.0 mm (4.49") H
Weight 5.56 kg (12.26 lbs.) without dust cover
Accessories Included Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge (black), 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')), Dust cover hinges
Notes Tonearm type: Static balanced straight carbon tonearm
Effective arm length: 223.6 mm
Overhang: 18.6 mm
Tracking error angle: <2 degrees
Applicable cartridge weight: 12-17 g
Stylus pressure adjustment range: 0-3 g
Replacement Stylus: AT-VMN95E BK
